Custom Rare Earth Sintered Samarium Cobalt Micro Magnet

/Custom Rare Earth Sintered Samarium Cobalt Micro Magnet
  • Sintered Samarium Cobalt Micro Magnet
Primary Competitive Advantages:
  • We are A Professional Permanent Magnets & Magnetic Assemblies Company Operating Since 2004
  • Our Quality Guaranteed
  • We Ship Worldwide
  • Small Orders Accepted
  • OEM Design Approvals
  • All Payment Accepted

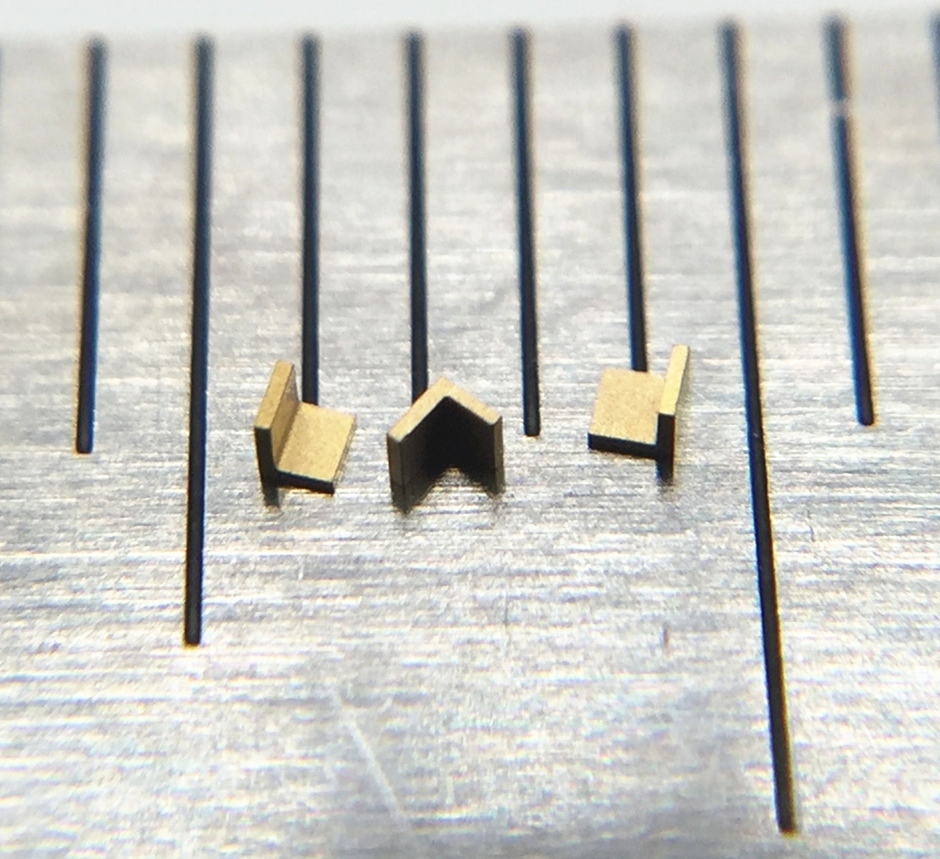

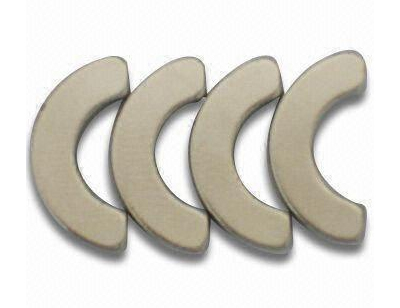

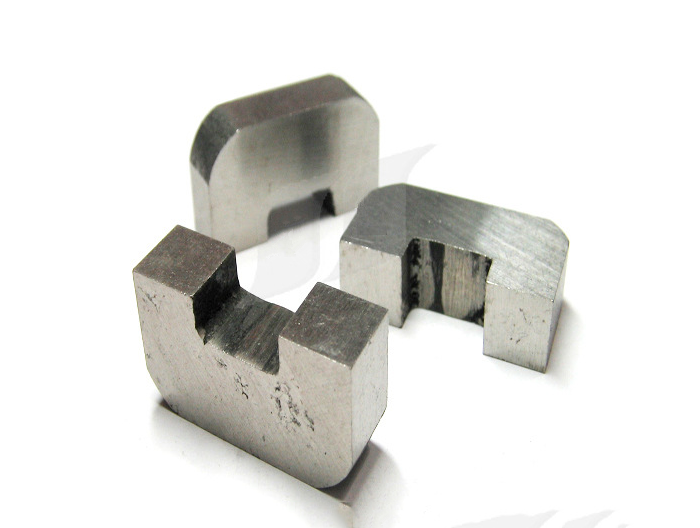

  • Custom Rare Earth Sintered Samarium Cobalt Micro Magnet, Various Shaped Precision SmCo Magnets, Micro Special SmCo Magnets, Sm2Co17 Customized L Type Magnet with Gold Coating, Irregular Shaped Rare Earth SmCo Magnets

    Custom Rare Earth Sintered Samarium Cobalt Micro Magnet Specifications:

    Materials
    Sm1Co5 and Sm2Co17

    Shape
    Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized shapes for SmCo Magnets are available.

    Dimensions
    Accept Customized

    Tolerances
    Radius: -0.04 to +0.04mm
    Width: -0.1 to +0.06mm
    Thickness: -0.03 to +0.03mm
    Accept Customized

    Coating
    None, Ni-Cu-Ni, Nickel, Zn, Gold

    Capacity
    more than 10K pieces/month

    Applications
    optical isolators and silent wave motors , electronic, sensor, motor, medical device, automotive, watch and communication

    Different magnet wide application, our company can according to user’s different product requirements, micro customize various special magnet. The lowest tolerance of + / – 0.04 mm, may choose samarium cobalt, ndfeb, etc as raw materials. Various Shaped Precision SmCo Magnets

    Specially-shaped magnets have been widely applied. Our company can customize various specially-shaped magnets for users according to their different product requirements. Samarium cobalt, NdFeB and other materials can be used as raw materials at the lowest tolerance of ±0.02mm.

    Product Details

    Project
    Long(mm)
    Width(mm)
    Height(mm)
    Vertical degree
    Material
    Basic Dimensions
    0.5-3.0
    0.5-3.0
    0.5-3.0
    Custom

    SmCo, NdFeB, Ferrite, AlNiCo, Ceramic and etc.

    Tolerance
    ±0.005-±0.02
    ±0.005-±0.02
    ±0.005-±0.02
    ±3°

    Samarium cobalt magnets are rare earth magnets that offer the best quality and value when comparing performance and size in high temperature environments (more on this below). They are extremely strong and typically allow for smaller size magnet profiles. Though not as strong as neodymium magnets, samarium cobalt magnets present three significant advantages:

    They work over a wider temperature range.
    They have superior temperature coefficients
    They have a greater resistance to corrosion.

    Since samarium cobalt offers excellent corrosion resistance, these magnets typically do not require a surface treatment. They also have good resistance to external demagnetizing fields because of their High Intrinsic Coercive Force (Hci). This resistance makes samarium cobalt rare earth magnets an excellent choice for electromechanical applications.
