BNP-6 Ndfeb Rotor Magnets

/BNP-6 Ndfeb Rotor Magnets
  • BNP-6 Ndfeb Rotor Magnets
Primary Competitive Advantages:
  • We are A Professional Permanent Magnets & Magnetic Assemblies Company Operating Since 2004
  • All Magnetic Grade for Sintered & Bonded Magnets
  • Our Quality Guaranteed
  • We Ship Worldwide
  • Small Orders Accepted
  • OEM Design Approvals
  • All Payment Accepted
  • BNP-6 Ndfeb Rotor Magnets, Permanent Bonded NdFeB Magnets for Motor Generator Rotor, BNP-6 Tube Ring Neodymium Thermoplastic Permanent Magnet, purchase magnets rotor motor, Bonded Magnet Ring NdFeB,  Compression Molded Rare Earth Neo, Neod or NIB radial ring magnet

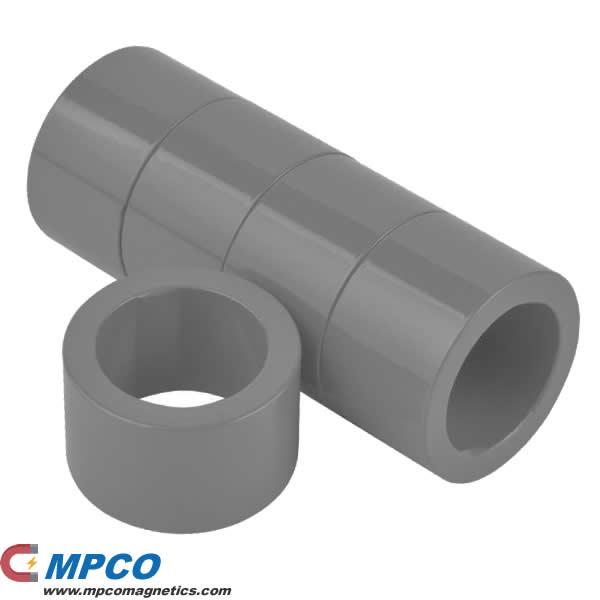

    Permanent Bonded NdFeB BNP-6 Ndfeb Rotor Magnets Description :
    shape motor Ring magnet
    grade BNP-6
    Size OD42*ID33*21 Thickness
    plating gray epoxy
    Material: Bonded Neodymium magnets
    shape:radial ring magnet
    coating:epoxy plated
    surface gauss:2100-3000gauss
    application:Motor Rotor
    Br:5.5-6.2KGS
    Hcb ≥285-370KA/m
    Hcj ≥600-755KA/m
    (BH)max 44-56KJ/M3
    Temp. Coefficlent 100°C
    The product can be customed by your requirement.

    MPCO Magnet Company is specialized in making ndfeb rotor magnets . It has hundreds of wire cutting machines running day and night. We can make high quality rotor magnets ndfeb, esepecially for those motors with certain working temperature requirement. We can supply oven test to ensure temperature resistance.
    Neodymium Bonded NdFeB Ring Magnets

    Shape: Ring
    Material: NdFeB
    Technology: Bonded, Precise tolerance of dimension, free from further machining
    Dimension: Customization
    Magnetization direction: Radial magnetization and Multi-pole magnetization
    Tolerances: ‘+/-0.05mm
    Coating: Electrophoresis. ( Black or Gray)
    Precise tolerance of dimension, free from further machining, is easy to be directly processed into thinickness wall, To be the magnetization of multistage magnetization. More corrosion resistance than sintered magnets, Various kinds of the bonded magnets of can be to develop higher magnetic.
    Application: Application for the computer peripheral products, office automation products and digital household appliances and various kinds of micro motor, Such as cooling fan motor, etc.

    Buyer’s Guide
    Material:What use the magnet material and performance?
    Dimension:What size: OD(?) x L (?) x W(? ) xT(?) and Do you have any drawing or specification?
    Tolerance: Do you have any the requirements of the tolerance?
    Grade:What Grades or Performance?
    Coating:What coating? Electrophoresis. ( Black or Gray) ?
    Working Temp.: Normal or High temperature ?
    Magnetization: Please tell us the magnetization direction requirement?

    Neodymium Magnet Safety use instructions

    This product has high magnetic, although we have used the professional gasket is separated, but in the process of production assembly, please pay attention to prevent hand or other parts of the body.Permanent Bonded NdFeB Magnets for Wind Motor Generator
    Please put about electronic products move to somewhere in assembly process, In order to avoid unnecessary losses.
    Please do not use random products, in order to avoid adsorption to the metal impurity, which affect the product assembly or performance.
    Please do not let children or does not have behavior ability experience, In order to avoid damage.

    Neodymium (chemical symbol Nd) is element 60 on the periodic table. It is a rare earth metal and forms one of the Lanthanides series. When added to Iron (Fe) and Boron (B) (chemical formula Nd14Fe21B) the resultant magnets are the strongest magnets currently available. Neodymium magnets are sometimes known as Neo, Neod or NIB magnets.
    Neodymium magnets are usually coated Nickel-Copper-Nickel plating to prevent the iron from rusting. ndfeb rotor magnets ​ was made of NdFeB, have strong magnetic performances and appearance does not rust, usually placed in room temperature, the maximum operating temperature is 80 ° C ,and it never will demagnetization.

    General Questions Of purchase magnets:

    1. Can I get free samples? Yes, if we have stock samples.
    2. How long will be the delivery time? Usually , 7-15days.
    3. Can the magnets be sent by air? Yes, we often ship magnets by air.
    4. Can you send the goods door to door? Yes.
    5. How can I know the gauss value? You can send the magnet sizes and grade to us. We can give your some idea.
    6. Can you make plastic products with magnets? Yes, we are professional in assembly magnets with plastic parts.
    7. Can you make magnetic products with steel or iron pieces? Yes, we are experienced in making steel parts with magnets.

    Send inquiry for ndfeb rotor magnets , getting instant prices right now!
