SINGLE & DOUBLE DRAWER MAGNETIC GRILLS

Drawer Type Permanent Magnetic Grills are used for separation of iron particles from dry, granular or free flowing product / materials. Drawer Magnetic Grills are made by using stainless steel having (Round or square or rectangular) with magnetic rods mounted on drawer.

The Drawer Type grills are made up of magnetic elements, which are fitted in a drawer and is moving in a housing. Magnetic Elements are made up of hard ferrite ceramic magnets or high intensity rare earth magnets ( Ndfeb ). All the components are made up of Stainless Steel 304/316 material. The overall construction of the magnetic grills can also be made as per the customer specification and sizes.

The grills are efficiently utilized if contamination is within 1% to 1.5% by weight. For higher levels of contamination Drawer Grills or Multi Drawer Grills should be used.

SINGLE & DOUBLE DRAWER MAGNETIC GRILLS

SINGLE & DOUBLE DRAWER MAGNETIC GRILLS

Low Intensity Magnetic Grill having Gauss value of approximately 2,500 Gauss are ideal for trapping contamination such as Nuts, Bolts, Screws, broken washers etc. these grills are designed to attract larger iron pieces from relatively larger distance.

Medium Intensity Magnetic Grill having Gauss value of approximately 5,500 Gauss are used where the contamination is in particle form, however there may or may not be continuous flow of material to be separated. The contamination size may be as low as 150 microns but not lower than that. The material should be free flowing and non sticky.

High Intensity Magnetic Grill having Gauss value of approximately 10,000 Gauss are employed at locations where separation of contamination particles as small as 1 microns is required. These grills have been designed to attract super fine particles from the carrier material. DRAWER MAGNETIC GRILLS

In all the three classes of grill, it is a necessity to clean the grills at regular intervals. It is recommended to clean the grill thoroughly before every pass (or as scheduled as per users requirement and experience). More accumulation of Iron particles for long time will reduce the effectiveness of the grill. For highest attraction, the grill needs to be fully clean.

Industries using Magnetic Grill:
Plastic
Food Products. (Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk etc.)
Pharmaceutical
Chemical
Ceramic
Colors / Paints
Pigments
Ink
Refractory
Mineral

Features:
All construction element of the grill magnet are in S.S. 304/ S.S.316.
Customized grill designs and magnetic grid designs available. DRAWER MAGNETIC GRILLS
Medium and High intensity Grills with Maximum operating temperature 250ᵒC also available.

Rotary Grate Magnet Separator

Rotary Grate Magnet Separator

Rotary Grate Magnet Separator, Rotary magnet with slider, Gravity Magnetic Separators, Rotary Powder Separator, Rotary Grate Magnets, Rotating Permanent Magnetic Separators Rotary Grate Magnet Separator Item No. MP-MRG series can prevent high viscosity or poor fluidity materials from blocking during ferromagnetic separation which made from stainless steel housing and strong Ndfeb or ferrite magnets. SEW […]



Self-Clean Drawer Filter Magnet with Round inletoutlet

Self-Clean Drawer Filter Magnet with Round inlet/outlet

Self-Clean Drawer Filter Magnet with Round inlet/outlet, Easy Cleaning Magnetic Separation Drawer Machine, Powerful Neodymium Cartridges Magnetic Drawer Separator, Quick-Clean / Manual Clean stainless steel housing Drawer Filter Magnets China Supplier Self-Clean Drawer Filter Magnet with Round inlet/outlet Item No. MP-SWd-NR & MP-SWs-NR  series: 1.Housing:SS304 or SS316L 2.Surface treatment: sand blasting /polishing 3.Magnetic intensity :1500-13000GS […]

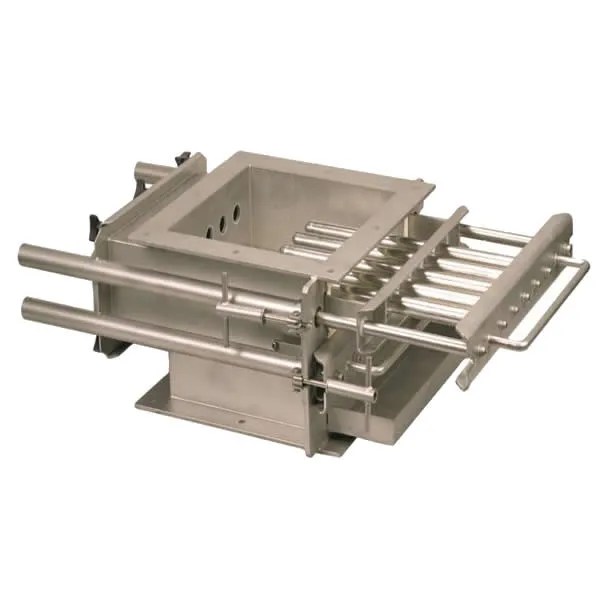

Square Inlet Outlet Easy Cleaning Separation Drawer Magnets
