Permanent Radial Oriented Ring Magnet, Nd Ring magnet, Neo Ring magnet, Rare earth Ring magnet

Key word: Radial Oriented Ring Magnet, Permanent magnet, Radial Ring magnet, Multipole Radial Ring magnet, NdFeB Magnet, Nd Magnet,
Material: N35, N45, 42M, 35SH, 38SH, 40SH, 35UH, 38UH grade etc
Application: Industrial Motor, Servo Motor, Robot Driving Motor, Stepper motor etc.

Material
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet

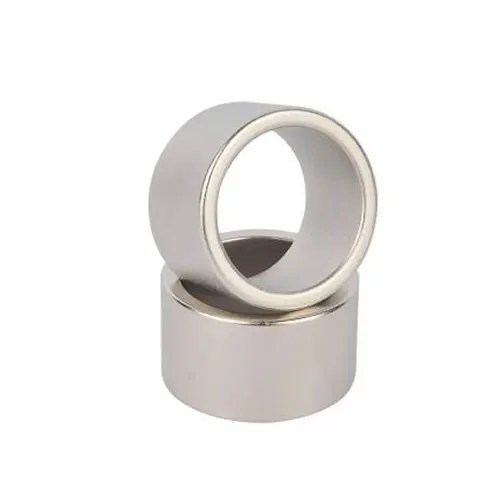

Radial Oriented Ring Magnet

Radial Oriented Ring Magnet

Grade & working Temperature
Grade Max Operating Temperatures
N35-N50
80°C (176°F)
35M-48M
100°C (212°F)
35H-45H
120°C (248°F)
33SH-42SH
150°C (302°F)
28UH-38UH
180°C (356°F)

Shape
Radial Oriented Ring Magnet, but Disc, Block, Cylinder, Arc and Irregular shape are also available

Coating
Ni, Ni-Cu-Ni, Zinc, Colored Zinc, Epoxy etc.

Magnetized direction
Radial magnetization, but Thickness, Axially, Diametrical, Multipoles are also available, Customized magnetization is welcome.

Application
Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Loudspeaker, Magnetic switch, sensor etc.

Certificate
ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH

Packing
Standard sea or air packing, such as carton, wooden box, pallet etc.

Lead time
50 days for samples ( 30 days for new Mold, 20 days for production).
15-20 days for bulk production.

Transportation
All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea.
Shipper or freight forwarder can be appointed by either purchaser or TC.

Product Advantages:
● Precision of geometry
● Variety of magnetic configuration
● Magnetic field distribution is very Homogeneous
● Very smooth of motor performances
● Easily to realize automatic assembly
● Huge marketing potential
● Labor-saving

1.Production flow of Permanent NdFeB Magnet:
2, Magnetic Property Distribution Chart of Permanent NdFeB Magnet

3, Available coating of Permanent NdFeB Magnet:
Ni, NiCuNi, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Sn etc.

4, Magnetized Direction of NdFeB magnet:
Thickness, Axially, Diametrical, Multipoles and Radial magnetization are available, Customized magnetization is welcome.

5, Applications of Permanent NdFeB Magnet:
Radial Oriented Ring Magnet are widely used in Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Loudspeaker, Magnetic switch, sensor etc.

6, Packing of Permanent NdFeB Magnet:
Standard sea or air packing, such as carton, wooden box and pallet etc.

7, Engineering and Research center of Permanent NdFeB Magnet:
Our engineering center occupied over 600 square meters with advanced analytical methods and full set of sophisticated test apparatuses, it not only assured the top quality of TC product, but also the foundation of our research and technic improving. The main test apparatuses are as follow:

ICP Tester, Scanning Electron Microscope, Laser Particle Size Analyzer, HAST Tester, Projectors, X-Ray Thickness Tester, Carbon-Sulfur Analyzer, Oxygen Analyzer, Hysteresigraph, Salt Spray Tester, Electrothermal Aging Test Box, Oxyhydrogen Tester, Magnetic field distribution tester, Image Dimension Measuring System, Vickers Hardness Tester, Magnetic Deviation Angle Tester, Universal Testing Machine etc.

If you have any question about us, welcome to contact us anytime!
