Plastic Bonded Pressed Magnets / Plastic Bonded Magnets

Plastic bonded pressed magnets are the result of the union between thermoplastic binders and permanent magnet powders, and can be made in isotropic or anisotropic qualities.

Pressed magnets are magnetic products manufactured with high precision and tailored for each application.

Type of material
Magnetic powders: ferrite or rare earth / Thermoplastics

Composition
NdFeB / SmCo
Ferrite
PA6 / PA11 / PA12

Work temperature
From 100ºC to 120ºC

Advantages
Good mechanical properties
Creation of complex shapes

Plastic Bonded Pressed Magnets

Plastic Bonded Pressed Magnets

QUALITY TABLE

MPCO MAGNETICS Energy product Remanence Rev. temp.-coeff. Coercivity Magnetising Max. Density
(B*H)max. Br of Br field operating
strength temperature
Plastic-bonded, pressed NdFeB-magnets kJ/m3 kJ/m3 mT mT approx. HcB HcJ min. approx. approx.
(typ.) (min.) (typ.) (min.) %/K kA/m kA/m kA/m °C g/cm3
(min.) (min.)
NdFeB 65/70 pw isotropic 70 65 650 610 -0,14 2) 390 700 2800 130 3) 6
NdFeB 65/85 pw isotropic 72 65 650 610 -0,13 2) 420 850 2800 140 3) 6
NdFeB 72/70 pw isotropic 80 72 700 660 -0,11 2) 440 700 2800 130 3) 6

CHARACTERISTICS

Any doubt about the qualities of the pressed magnets, you can check the properties (remanence, force, coercivity, temperatures …) in the following quality table.

ADVANTAGE

They have excellent mechanical properties that allow us to achieve tight tolerances facilitating the balance and assembly of the same.

This material allows the creation of more complex geometries. MPCO currently manufactures this product for numerous clients; engine manufacturers, magnetic encoders of household appliances, washers and motors, automotive.

WORK TEMPERATURE

With this type of materials for the injection maximum temperatures of 100ºC for PA12 and approximately 120ºC for PA6 are obtained.

APPLICATIONS

The properties of pressed magnets create endless applications in most industrial sectors.
ELECTRIC MOTORS
ENCODERS
ROBOTICS
AUTOMOTIVE PARTS
GENERATORS
HOME APPLIANCES

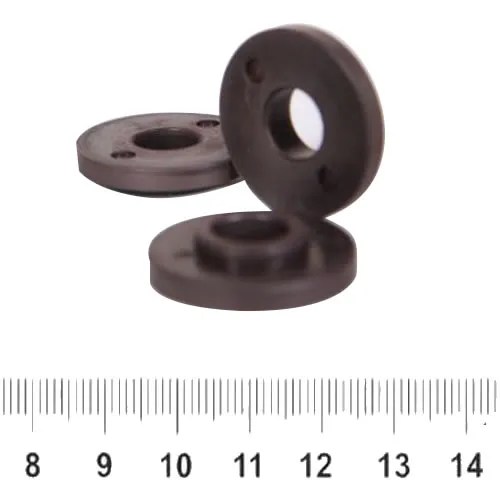

Customized Ring Precision Bonded Injection Ferrite Magnets

Customized Ring Precision Bonded Injection Ferrite Magnets

Customized Ring Precision Bonded Injection Ferrite Magnets, Special Design Custom-made Tiny Plastic Bonded Electrical Brushless Motor Rotor Injection Ferrite Magnet, BLDC Motor Magnets Customized Ring Precision Bonded Injection Ferrite Magnets Feature: Name Injection Magnet Coating No Size As customers’ requests Tolerence +/-0.05mm Technology Injetion moulding Used BLDC Motor, Automatic equipment, D/C motor and Sensors Injection […]

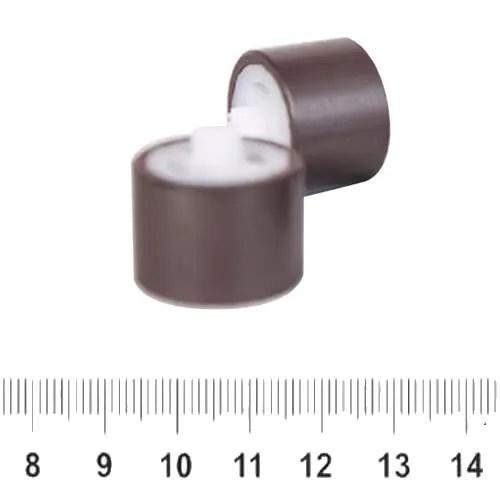

Plastic Bonded Electrical Injection Ferrite Magnet

Special Design Custom-made Plastic Bonded Electrical Injection Ferrite Magnet

Special Design Custom-made Plastic Bonded Electrical Injection Ferrite Magnet, Over Molded Injection Magnets, High Temperature Injection Molded Magnets, Customized Precision Injection Molding Bonded Ferrite Magnets Special Design Custom-made Plastic Bonded Electrical Injection Ferrite Magnet Feature: Name Injection Magnet Grade Y30 Coating No Size As customers’ requests Tolerence +/-0.05mm Technology Injetion moulding Used Automatic equipment, D/C […]



Injection Molded Magnetic Water Flow Rotor for Water Heater

Injection Molded Magnetic Water Flow Rotor for Water Heater

Injection Molded Magnetic Water Flow Rotor for Water Heater, Bonded Flow Sensor Magnets, Plastic injection sensor permanent magnet, Water Injection Molding Magnetic Rotor, Small Purchase Bonded Magnets Supplier Injection Molded Magnetic Water Flow Rotor for Water Heater Specification Size of Water Flow Rotor 12mm X 10mm X 2mm Model NO. TP-A27E Coercivity of Water Flow […]

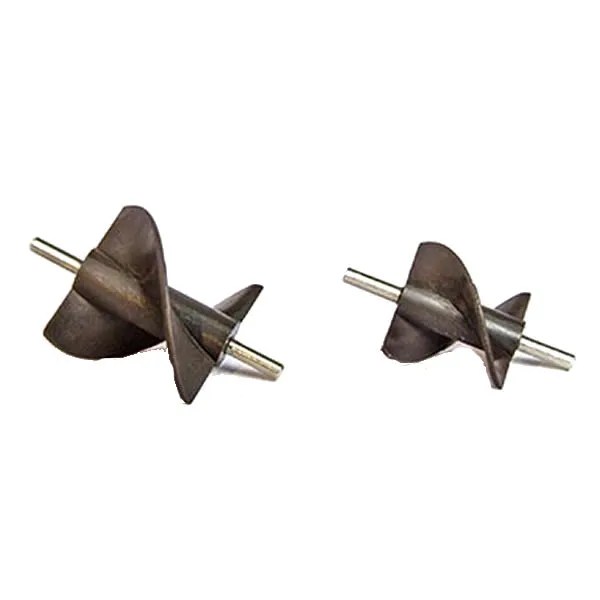

Injection Molding Bonded Flow Sensor Magnets
