MPCO’s Magnetic Rails (MPMRAIL series) are engineered for simple installation into new or existing belted conveyor applications. MPCO Magnetic Rails are used to hold and position ferrous parts. They are ideal for use in can handling as well as other applications which require a high reaching magnetic field. MPCO Magnetic Rails are often used in conjunction with magnetic pulleys; typical installation is underneath the belt.

Features

Lifetime Guarantee of Permanent Magnet Strength
Less than 1% magnetic loss in 100 years
304 Stainless Steel magnet cover
Powerful permanent Ceramic 8 magnet material
Mild steel tapped backplate

Magnetic Rails

Magnetic Rails

Benefits

Easy installation
Maintain part position
Positive holding reduces product scrap rates
Maximize floor space by elevating parts vertically
Separate ferrous parts from non-ferrous materials

Magnetic Skate Rails
MPCO Magnetic Skate Rails are engineered for added support of suspended wide sheet steel between and outside of Magnetic Gearbelt Conveyors. Magnetic Skate Rails can prevent bowing or sagging of wide sheets in press-feeding, stacking and destacking applications. Magnetic Skate Rails can also be used in stand-alone applications where sheet grabbers [grips], vacuum cups or other means are used to mobilize the sheet.

Features

Adjustable magnetic strength
Non-marring rollers
Low friction transfer of suspended ferrous sheets

Benefits

Maintain Class A product surface finish
Reduce initial costs by using fewer conveyors
No belts to wear or replace
Reduce labor expenses

Model No. Width A (“) Height B (“) Length C (“) Tap Size Tap Distance
MPMRAIL2-9 2.625 .0562 Up to 60″ max 5/16-18 UNC 12″ centers beyond 16″ length
MPMRAI4-13 4.187 0.812 Up to 96″ max 3/8-16 UNC 12″ centers beyond 16″ length
MPMRAI4-17 4.187 1.060 Up to 96″ max 3/8-16 UNC 12″ centers beyond 16″ length
MPMRAI4-21 4.187 1.312 Up to 96″ max 3/8-16 UNC 12″ centers beyond 16″ length
MPMRAI4-31 4.187 1.937 Up to 96″ max 3/8-16 UNC 12″ centers beyond 16″ length
MPMRAI5-41 5.187 2.560 Up to 96″ max 3/8-16 UNC 12″ centers beyond 16″ length
MPMRAI8-65 8.187 4.062 Up to 96″ max 1/2-13 UNC 12″ centers beyond 16″ length

Typical applications: high speed can handling, ferrous / non-ferrous separation, parts transfer, parts inspection, metal stamping.
Options: face plate, Scarfed ends to match pulley radius, Depleting magnetic fields, Convex curved rails in any radius or angle, Custom face plate widths, Custom mounting holes.

Epoxy Coated Lamination Sector Neodymium Magnet

Epoxy Coated Lamination Sector Neodymium Magnet

Epoxy Coated Lamination Sector Neodymium Magnet, Laminated Magnet Assembly, Rare Earth NdFeB and SmCo Laminated Permanent Magnet, High Efficiency Motor Laminated Segmented Magnet, Layered Magnet, Segmentation Technology Lamination Magnet, Split Magnet Epoxy Coated Lamination Sector Neodymium Magnet Item No. MPCO-LAMN  series Laminated magnets can reduce eddy current Loss in high efficiency motors. High efficiency demands […]



NdFeB and SmCo Laminated Permanent Magnet

Rare Earth NdFeB and SmCo Laminated Permanent Magnet

Rare Earth NdFeB and SmCo Laminated Permanent Magnet, High Efficiency Motor Laminated Segmented Magnet, Layered Magnet, Segmentation Technology Lamination Magnet, Neodymium Split Magnet, Permanent Laminated Magnets for high efficiency motors to eddy current reduction Rare Earth NdFeB and SmCo Laminated Permanent Magnet Item No. MPCO-LAMN OR MPCO-LAMS series 1. Laminated magnetd can reduce eddy current loss […]



High Efficiency Motor Laminated Segmented Magnet

High Efficiency Motor Laminated Segmented Magnet

High Efficiency Motor Laminated Segmented Magnet, Segmentation Technology Layered Magnet, Segmented Lamination Magnet, NEODYMIUM split magnet, High-resistivity sintered rare earth arc laminated magnets, Permanent type Laminated Magnets for high efficiency motors to eddy current reduction High Efficiency Motor Laminated Segmented Magnet Item No. MPCO-LAMN OR MPCO-LAMS series Laminated magnetd can reduce eddy current loss in high […]

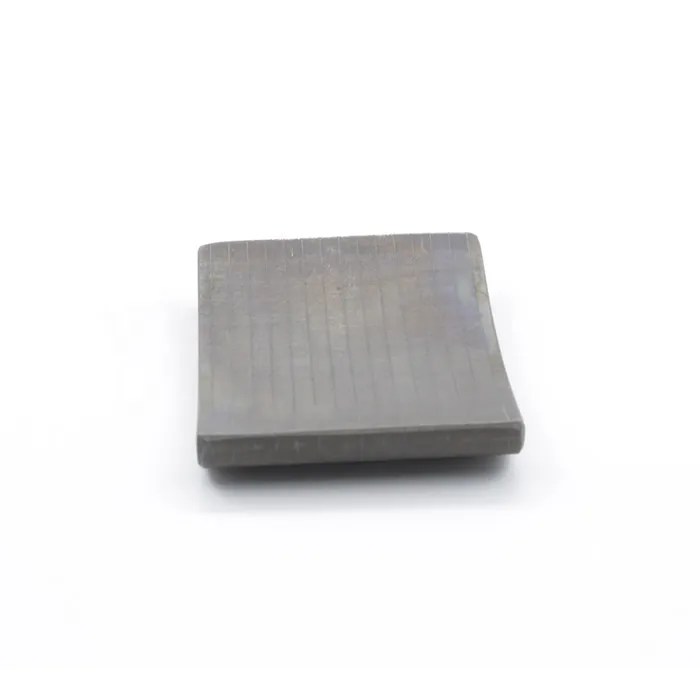

Segmentation Technology Layered Magnet
