Bullet Separator Magnets, Pipe Line Magnetic Systems

Bullet Separator Magnets, Mganetic Bullet separators are designed to remove relative lager pieces of iron tramps like nuts, bolts and nails to avoid damage to the downstream machines. This equipment is usually installed in gravity and pneumatically pipelines. Bullet separator is applicative to all the powder and granular products which is dry. Such as grain, powder and feed etc.

Construction:
Bullet separator is constructed by a nose cone in the central within a SS housing outside. Cone shape ensures smooth flowing volume. High intensity magnet makes the cone concentrate strong strength to capture the iron tramps perfectly.

Bullet Separator Magnets

Bullet Separator Magnets

Bullet magnets are an efficient device for extracting ferrous fines as well as large pieces of contamination from gravity or air blown pipelines, for products such as flour, sugar, salt etc.

Features:
1. The cone-shaped bullet tip ensures optimum product distribution to the magnet without impeding product flow.
2. Designed for quick and easy cleaning outside the bullet housing.
3. Industrial, food and dairy grade units custom built on request.
4. Food/dairy grade units are fully welded with a catchment ledge at the bottom of the bullet helping to stop contamination wash off.
5. Ceramic gauss rating is 3000 gauss, rare earth gauss ratings from 8,000 – 12,000 gauss depending on the size and application required.
6. All our bullet magnets are 11,000-12,000 gauss.

How to do cleaning?
Easy-clean design. As the cone is fixed with the door, when you open the door , cone will come out simultaneously. Then just wipe the cone with glove on hand

How to select our products?
Please advise us the above necessary information to make enquiry. If you aren’t in a position to offer these information, please feel free to contact our engineer and acquaint us with the application environment and material condition.

Magnetic separators based on permanent neodymium and ferrite magnets are used for purifying different bulk and oil materials from ferromagnetic pollution, such as filings, wires, screws or nuts. They are widely used, amongst other, in processing of plastics, food industry, tobacco industry, wood industry, ceramics and recycling.

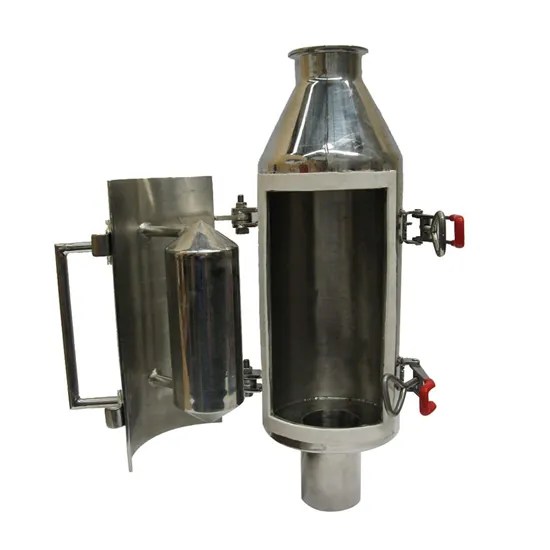

Permanent Pipe Magnets

Permanent Pipe Magnets

Permanent Pipe Magnets, Housed Magnetic Bullet, Easy-Clean House Bullet Magnet, Bullet Separator Pipeline Magnet, Magnetic Bullet Separator, Pipeline Magnet, pipe magnetic separation China Manufacturer Easy-Clean Permanent Pipe Magnets Item No. MP-SWBM series – Bullet magnets are an efficient device for extracting ferrous fines as well as large pieces of contamination from gravity or air blown […]



Easy-Clean Housed Bullet Magnet

Easy-Clean Housed Bullet Magnet

Easy-Clean Housed Bullet Magnet, Bullet Separator Pipeline Magnet, Magnetic Bullet Separator, Pipeline Magnet, magnetic pipe separation, Housed Magnetic Bullet, Permanent Bullet Magnets & Pipe Magnets China Manufacturer Easy-Clean Housed Bullet Magnet Item No. MP-SWBM series – Bullet magnets are an efficient device for extracting ferrous fines as well as large pieces of contamination from gravity […]



Bullet Separator Pipeline Magnet

Bullet Separator Pipeline Magnet

Bullet Separator Pipeline Magnet, Magnetic Bullet Separator, Easy-Clean Bullet Magnet, Pipeline Magnet, pipe magnetic separator, Housed Magnetic Bullet, Permanent Bullet Magnets & Pipe Magnets China Supplier Bullet Separator Pipeline Magnet Item No. MP-SWBM series 100% Stainless Steel construction with magnetic force 3000-15000gs, Custom made is avaiable. Bullet magnetic separator is designed to remove relative lager […]



Magnetic Bullet Separator

Magnetic Bullet Separator

Magnetic Bullet Separator, Bullet Magnet, Bullet style magnetic separator, Pipeline Magnet, pipe magnetic separator, Housed Magnetic Bullet, Permanent Bullet Magnets & Pipe Magnets China Supplier Magnetic Bullet Separator Item No. MP-SWBM series 100% Stainless Steel construction with magnetic force 3000-15000gs, Custom made is avaiable. The Permanent Magnetic Bullet Separator is a compact, efficient in-line magnetic […]
